Kitoma Indonesia - Menyediakan Idec TW Series Switches

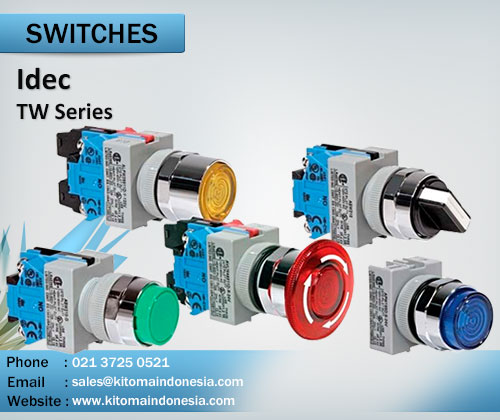

A traditional NEMA style switch, the TW series features a chrome plated octagonal locking ring that fastens from the front of the panel. Modular construction with snap-on contacts allows for great flexibility in configuration.

Contacts are slow make, double break with a self-cleaning action that produces a wide switching range (from 5mA to 10A). Several screw terminal styles are available from the standard exposed full size M3.5 screw to a fingersafe (IP20) screw terminal (contacts are interchangeable with the HW series). Models include illuminated or non-illuminated pushbuttons, pilot lights, selectors, key switches, and Emergency Stop switches.

Key Features

• 22mm (7/8") round mounting hole
• Super bright incandescent or LED illumination
• Corrosion resistant octagonal chrome plated locking bezel
• Snap on 10A contacts
• Modular contruction for maximum flexibility
• NEMA 4X and IP65 watertight/oiltight panel sealing
• Available assembled or as sub-components
• Large M3.5 screw terminals with captive sems plate
• UL Listed, CSA Certified, TUV Approved, and CE Marked

Catalog

Untuk informasi lebih lanjut silakan hubungi bagian Marketing kami, kami senang untuk membantu :
