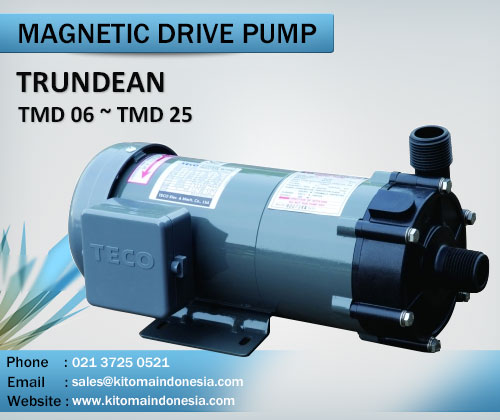

Magnetic Drive Pump Trundean TMD 06 ~ TMD 25
Kitoma Indonesia - Trundean TMD 06 ~ TMD 25
Features:
- Seal-free, no leakage
- Excellent corrosion resistant materials such as SIC, ceramics etc...
- Designed with an emphasis on improved durability
- Easy to assemble, Wide application
Application:
- PCB manufacturing prosess
- Chemical industry
- Filtration
- Etching
- Electroplating
- Heat exchanger
- Seawater aquaculture
Note:
- Dry running is strictly prohibited
- The pump are not appropriate for the solutions which contain crystal or particles
Parts & Materials Table
| Type | TMD 06~25P | TMD 06~25F | ||
| Solution | AC | AL | AC | AL |
| Parts | Material | Material | ||
| 1. Front Casing | GFRPP | CFRPVDF | ||
| 2. Spindle | CERAMIC | CERAMIC | ||
| 3. Bearing |
PTFE | PTFE | ||
| 4. Impeller | GFRPP | CFRPVDF | ||
| 5. Magnet Capsule | FERRIC | FERRIC | ||
| 6. Rear Casing | GFRPP | CFRPVDF | ||
| 7. Drive Magnet | FERRIC | FERRIC | ||
| 8. O-Ring | VITON | EPDM | VITON | EPDM |
Specification & Performance Table
50Hz / 60Hz
| Type | Bore | Thread | Max Capacity | Max. Head | S. G | Motor | Pole | |||
| Inlet | Outlet | Inlet Outlet | Union | L/min | m | Phase | Output | |||
| TMD-06 | 20mm | 20mm | PF 3/4" | 16mm | 37/40 | 4/5.8 | 1.1 | 1 or 3 | 65W | 2 |
| TMD-09 | 26mm | 26mm | PF 1" | 20mm | 72/95 | 7/10 | 1.2 | 1 or 3 | 90W | 2 |
| TMD-18 | 26mm | 26mm | PF 1" | 20mm | 72/95 | 7/10 | 1.1 | 1 or 3 | 180W | 2 |
| TMD-25 | 26mm | 26mm | PF 1" | 20mm | 118/119 | 12/12 | 1.2 | 1 or 3 | 250W | 2 |
