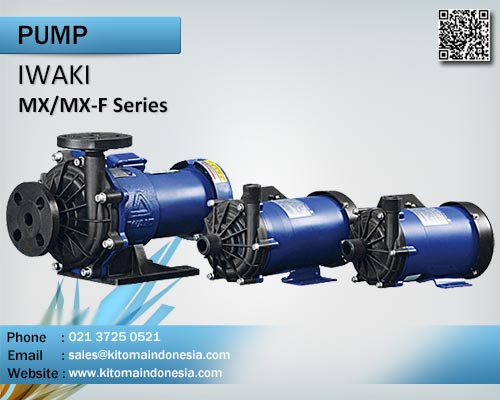

Iwaki Process magnetic drive pumps MX/MX-F series





Kitoma Indonesia - Iwaki Process Magnetic Drive Pumps MX/MX-F Series



MX: Max. discharge capacity range (50/60Hz): 90 to 500/100 to 500 L/min
MX-F: Max. discharge capacity range (50/60Hz): 110 to 510/100 to 510 L/min



Reliable & energy efficient magnetic drive pumps

Features of MX / MX-F series

Self-radiating structure (PAT)

Through heat-dispersion holes provided in the fixed portions of the impeller and the magnet capsule, the liquid around the spindle and the bearing is forced to circulate so that heat generated by sliding can be reduced effectively. Thus, thermal deformation and melt are prevented.

Volute casing divided into two sections (PAT)

The MX series is the first resin magnet pump which uses the pump casing divided into the front casing and the rear casing to form a vortex chamber as an ideal form. Therefore, the internal leak phenomenon, which means that the liquid getting out of the impeller returns to the pump casing and is suppressed to a minimum and the liquid is efficiently guided to the discharge port to enhance overall efficiency.

Non-contact structure

By installing the driving magnet and the driven magnet in an inventive way, the movement of the magnet capsule is controlled by magnetic force to prevent the rear thrust and the rear portion of the bearing coming into contact with each other continuously even during dry running. This structure reduces heat generation and secures lubricant routes. (Except MX-70, 100)

Robust structure

All stress bearing portions, such as the front and rear casings, are reinforced by means of ribs to improve the pressure resistance and the mechanical strength of the pump. The bearing is not only fixed by conventional press fit but is also sandwiched between the abutting portion in the depth of the magnet capsule and the rear end of the impeller to improve its reliability under high temperature. (Except MX-70, 100)



Specifications (50/60Hz)



Max. discharge capacity range

MX: 90 to 500/100 to 500 L/min
MX-F: 110 to 510/110 to 510 L/min

Max. head range

MX: 8 to 36/11 to 39 m
MX-F: 7 to 29.5/7.5 to 27 m

Main materials

MX: GFRPP / MX-F: CFRETFE

Required power range

0.15 to 2.2kW

Discharge bore

G1, 25mm, 40 mm

Liquid temp. range

0 to 80˚C (10 to 80˚C for Aflas® O ring.)

Specific gravity limit

Up to approx. 1.2 (Please contact us for details.)

Sealing method

Seal-less construction
